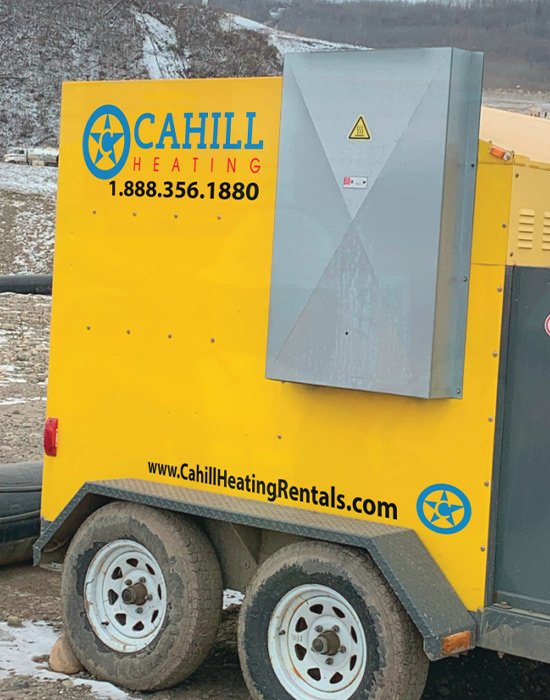

Cahill Glycol Heater
The Cahill Glycol Heater guards against Contamination Spills. The heater is designed to hold 150% containment should an accident occur. Safety sensors shut down equipment during a spill. The Cahill Glycol unit can run uninterrupted with a fail-safe backup system.
Contact Us
Inquires will be replied to within 24 hours.

Product Specifications & Applications
Specifications
Applications
Specifications
Weight: 8,295 lbs. (3,763 kg) (with Genset, fully fueled)
Length: 178.5 in. (453 cm)
Width: 96 in. (244 cm)
Height: 91 in. (231 cm)
Tongue Weight: 1075 lbs (488 kg) (with Genset)
Fuel Capacity: 170 Gallons (644 liters)
Fuel Requirements: #1 Diesel Fuel
Fuel Consumption: 1.75 GPH burner nozzle, 6.63 LPH without generator (at full operation)
Boilers: One 280,000 Input BTU
Operating Temp: 50°F – 190°F (10°C – 88°C)
Boiler Efficiency: 87% (with fuel pre-heater)
Heat Transfer Fluid: 80 US gallons (303 liters)
Heat Transfer Hose: 3,000 ft. [4 x 750 ft.] x 5/8 in. ID, 914 m [4 x 288.6 m] x16 mm ID
Circulation Pump: One 3/4 hp
Fill Pump: One
Reserve Tank: 15 gal. (57 litres)
Hose Reel: Direct drive, high/low speed, (forward & reverse) Freewheeling out and in reverse with soft start & stop
Space Heating: Up to 234,000 BTUs
Thaw Area: Up to 6,000 sq. ft. (557 sq m)
Cure Area: Up to 18,000 sq. ft. (1,672 sq m) (optimal conditions slab on grade)
Length: 178.5 in. (453 cm)
Width: 96 in. (244 cm)
Height: 91 in. (231 cm)
Tongue Weight: 1075 lbs (488 kg) (with Genset)
Fuel Capacity: 170 Gallons (644 liters)
Fuel Requirements: #1 Diesel Fuel
Fuel Consumption: 1.75 GPH burner nozzle, 6.63 LPH without generator (at full operation)
Boilers: One 280,000 Input BTU
Operating Temp: 50°F – 190°F (10°C – 88°C)
Boiler Efficiency: 87% (with fuel pre-heater)
Heat Transfer Fluid: 80 US gallons (303 liters)
Heat Transfer Hose: 3,000 ft. [4 x 750 ft.] x 5/8 in. ID, 914 m [4 x 288.6 m] x16 mm ID
Circulation Pump: One 3/4 hp
Fill Pump: One
Reserve Tank: 15 gal. (57 litres)
Hose Reel: Direct drive, high/low speed, (forward & reverse) Freewheeling out and in reverse with soft start & stop
Space Heating: Up to 234,000 BTUs
Thaw Area: Up to 6,000 sq. ft. (557 sq m)
Cure Area: Up to 18,000 sq. ft. (1,672 sq m) (optimal conditions slab on grade)
Applications
Ground Thawing
Cold Weather Concrete Warming / Curing
Pre-Pour Warming
Ground Frost Prevention
Freeze Protection
Cold Weather Concrete Warming / Curing
Pre-Pour Warming
Ground Frost Prevention
Freeze Protection
