Magnetic Heat Generating Technology

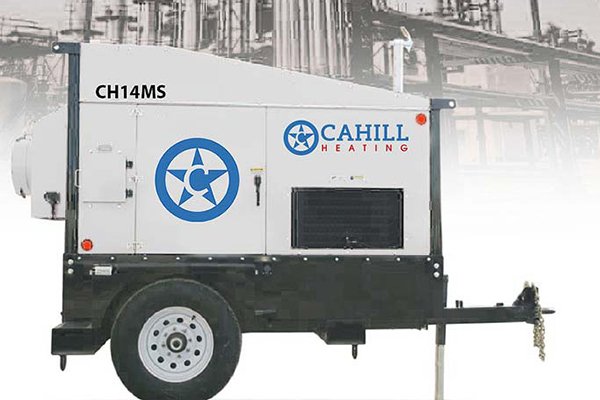

The CH14MS industrial heater uses magnetic heat-generating technology. The heater is perfect for crucial applications with variable temperature and CFM settings.
Contact Us
Inquires will be replied to within 24 hours.

Product Specifications & Applications
Specifications
Applications
Specifications
Features
1,200,000 BTU equivalent
160°F temperature rise
Up to 6400 CFM
>95% efficiency
16″ ducting with 12″ optional dual ducting
155 gallon tank capacity
Self-contained unit with no external power source required
Clean, breathable air
Compact, portable design
PerformanceBTU rating – 1,200,000 equivalent
CFM range – Up to 6400
Engine DataEngine Type – CAT
Electronics – Murphy
Fuel DataFuel Capacity – 155 gallons
Fuel Type – Diesel
Fuel Consumption – 5.4 gph
DimensionsHeight – 7’9″
Length – 8’7″
Width – 7’3″
Dry Weight – 5700 lbs
Performance
Engine Data
Fuel Data
Dimensions
Applications
Oil and Gas
Drill deck, pump station and water line heating
Snubbing stack heating
Heating wellheads and BOPs
Equipment thawing and deicing
ConstructionConcrete curing
Ground thaw
Aggregate Heating
Worker Comfort Heating
Hoardings heating
Temporary site heating
Coatings and PaintingTank coating and curing
Surface Preparation
Moisture and humidity control
Dehumidification
Deicing
Auxiliary heat
Construction
Coatings and Painting
